5X-1.5 Seed Cleaner
Efficient Cleaning • Higher Purity • Better Seed Germination
The 5X-1.5 Seed Cleaner is specifically designed to eliminate impurities, dust, broken seeds, chaff, and light debris to deliver commercial-grade planting seed. Suitable for a wide range of grain varieties across Zambia.
Throughput: 700 – 1000 kg/hRequest Machine Quotation or Demo
Available for immediate delivery from our Lusaka warehouse with complete setup, electrical calibration, and operational training.
Applicable Seed & Grain Crops
Interchangeable screen sieves handle diverse seed sizes and shapes:
Core Features & Advantages
Bent Blade Air Separation
Adopts precision bent blade processing technology for the extraction fan, achieving superior light impurity and chaff removal.
Pure Copper 220V Motor
Powered by a high-torque 4 kW copper-wound motor delivering 2800 r/min for sustained industrial service life.
Walking Wheels for Mobility
Equipped with durable pneumatic walking wheels and transport handle for effortless maneuvering inside processing sheds.
Three-Phase Modification Option
Standard 220V single-phase connection with optional factory modification for 380V three-phase commercial farm supply.

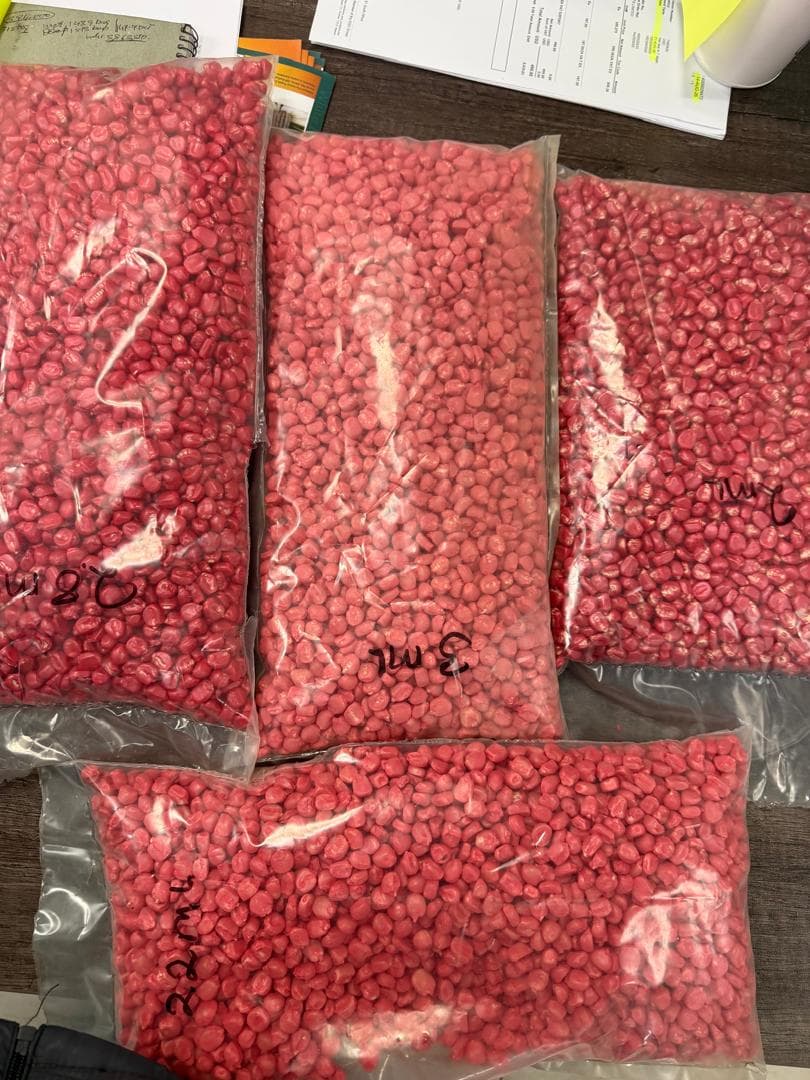

Cleaned & Graded Seed Bagging
Demonstrates the seed cleanliness and uniform seed sizing achieved after impurity removal with the 5X-1.5 unit before bagging.
Technical Specifications
| Hourly Output | 700 – 1000 kg / hour |
|---|---|
| Rated Voltage | 220 V (Optional 380 V 3-Phase available) |
| Motor Power | 4.0 kW Pure Copper Motor |
| Fan Rotating Speed | 2800 r/min |
| Total Machine Weight | 200 kg |
| Overall Dimensions (L × W × H) | 1600 × 1050 × 1870 mm |
| Impurity Separation System | Cyclone air separation duct + dual-deck reciprocating sieve deck |
Watch: Impurity Extraction & Grain Flow
Observe high-volume grain intake, dust extraction via cyclone duct, and separated clean seed output.
